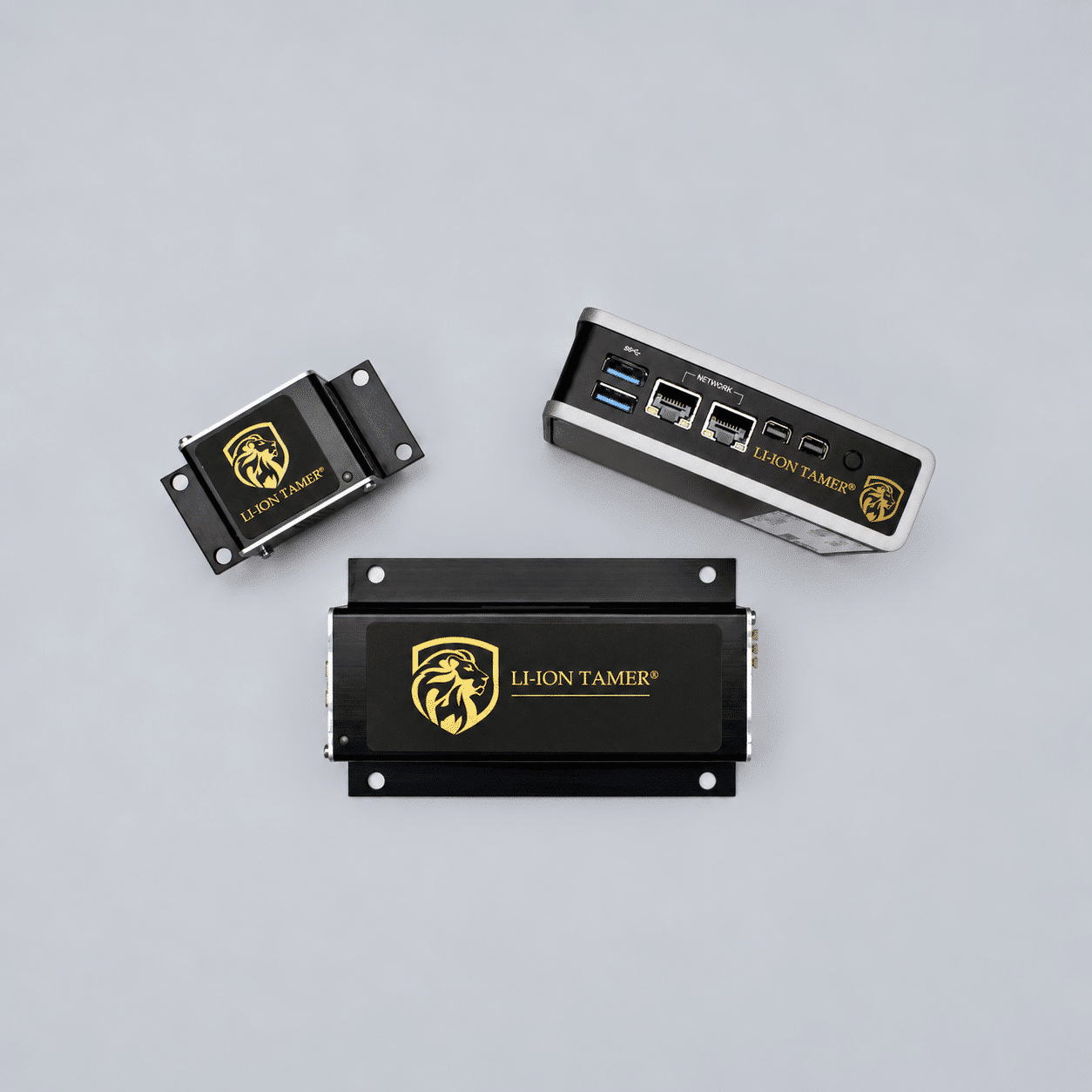

Li-Ion Tamer Gen 3 | Early Detection of Lithium-Ion Batteries
Fully pre-assembled base unit for early gas detection in lithium-ion batteries.
The Li-Ion Tamer Gen 3 is an advanced detection system for lithium-ion batteries. The system detects gases released by a defective battery cell at an early stage, even before thermal runaway occurs. This allows more time to take appropriate safety measures and limit damage.
€ 12.098,79 including taxThe foundation for early detection of battery problems
In lithium-ion batteries, volatile gases may be released during the initial stage of a malfunction. These so-called off-gassing may occur before a situation escalates further into severe overheating or thermal runaway.
Early detection of these gases makes it possible to respond more quickly to abnormal battery behavior.
The Li-ion Tamer® Gen 3 Starter Kit serves as the central foundation upon which a complete Li-ion Tamer gas detection system is built.
The set includes, among other things, the controller, monitoring and reference sensors, power supply, Ethernet components, and other necessary connection components. Everything is delivered pre-assembled in a IP66-certified Rittal steel enclosure.
Thanks to its modular architecture, the system can then be expanded to up to 100 sensors. This allows a single system to be tailored to both smaller installations and large-scale battery and energy storage systems.
MOST IMPORTANT BENEFITS
Early Gas Detection
Li-ion Tamer was developed to detect off-gassing from lithium-ion batteries at an early stage, so that abnormal battery behavior can be identified before an incident escalates further.
Fully pre-assembled
The basic set is delivered complete and fully pre-assembled in a Rittal steel enclosure, making it ready for efficient on-site installation.
Expandable to 100 sensors
Thanks to the modular Gen 3 architecture, the system can be expanded to include up to 100 sensors, depending on the size of the battery system.
Complete Starter Kit
The controller, power supply, Ethernet components, monitoring and reference sensors, and necessary accessories are all included in a single, complete basic solution.
Technical specifications
The Li-ion Tamer® Gen 3 Basic Kit is the central component of a modular system for early gas detection around lithium-ion batteries.
The components are housed in a IP66-certified Rittal steel enclosure with a lockable latch. This ensures that the central system components are neatly organized and protected.
The set comes fully assembled and also includes a complete engineering package for the continued implementation of the installation.
The modular design allows for expansion up to a maximum of 100 sensors possible. This allows the system to be tailored to the specific battery configuration, space, and desired monitoring coverage.
Specifications
- Product: Li-ion Tamer® Gen 3 Starter Kit
- Type: Basic Kit for Lithium-Ion Off-Gas Detection
- Generation: Gen 3
- Delivery: Fully pre-assembled
- Enclosure: Rittal steel enclosure
- Enclosure protection rating: IP66
- Enclosure security: Lockable latch
- Engineering: Complete engineering package included
- System Architecture: Modular
- Scalability: Up to 100 sensors
- Detection Principle: Monitoring of Off-Gassing in Lithium-Ion Batteries
- Application: Lithium-ion battery and energy storage systems
- Contents of the pre-assembled starter kit:
- LT-ACC-ERO-16 – Ethernet Relay Output, 16-port
- LT-ACC-HUB-PWR – Hub Direct Power LT Gen 3
- LT-ACC-POE-4 – Ethernet PoE Switch, 4 ports
- LT-ACC-PWR-48 – 48 VDC Power Supply
- LT-ACC-SAK – Spare Kit: 4× Terminators, 1× Screw Adapter
- LT-CTR-SML – LT Gen 3 Controller
- LT-CTR-SML-DMK – LT Gen 3 Controller DIN-Mount Kit
- LT-SEN-M3 – LT Gen 3 Sensor Monitoring
- LT-SEN-R3 – LT Gen 3 Sensor Reference
- LT-ACC-TST – Test Bottle Kit
HOW DOES IT WORK?
Detect. Identify. Take early action.
Lithium-ion batteries can release volatile gases during the initial stage of an internal defect. These off-gassing This could be an early sign that a battery cell is behaving abnormally.
The Li-ion Tamer® Gen 3 system monitors the environment using sensors designed to detect these gases early on.
The The Gen 3 Basic Set forms the central foundation of this installation. The controller processes the information from the connected sensors and makes it possible to set up a detection system tailored to the battery system.
When off-gassing is detected, the system can provide an early warning signal that triggers appropriate follow-up actions within the safety strategy.
By expanding the system to a maximum of 100 sensors A larger battery array can be monitored from multiple locations.
The goal is to identify abnormal battery behavior to identify as early as possible, so that action can be taken before the situation escalates further.
APPLICATIONS
Scalable Early Detection for Lithium-Ion Systems
The Li-ion Tamer® Gen 3 Basic Kit is intended as a foundation for locations where large quantities of lithium-ion batteries are stored, loaded, or used for business purposes.
Thanks to the modular system architecture, the number of sensors can be tailored to the size and layout of the installation.
The final configuration, the number of sensors, and their placement are tailored to the battery configuration, space, and desired detection coverage.
Possible applications include:
- Battery Energy Storage Systems (BESS)
- Energy Storage Systems
- Battery Compartments
- Battery Containers
- Industrial Battery Systems
- UPS Systems
- Data Centers
- Server and Technical Rooms
- Battery Storage
- Charging Stations
- Energy Infrastructure
- Marine Battery Systems
- Ships and yachts with lithium-ion battery systems
- Battery production and testing environments
- Professional facilities with larger lithium-ion systems
The Li-ion Tamer® Gen 3 Starter Kit serves as the foundation for the early detection component within a broader lithium-ion safety strategy.
The first line of defense remains prevention: a properly designed battery system, appropriate charging and electrical infrastructure, periodic inspections, and effective battery management all help reduce the likelihood of an incident.
The next important layer is early detection. When a battery cell begins to exhibit abnormal behavior, off-gassing can be an early warning sign.
Li-ion Tamer® was developed to detect these signs early on. This allows valuable time to be gained to take appropriate measures before a situation escalates further.
Depending on the design of the entire system, detection can be combined with alarm systems, automatic safety measures, ventilation, shutdown, fire protection, and containment.
For example, the Li-ion Tamer® Gen 3 Basic Set serves as the central foundation for a scalable safety strategy in which prevention, early detection, and targeted intervention complement each other.
